Last month, I helped a friend replace the stock tuning machines on his 7-string Ibanez. We ordered what looked like the perfect set of locking tuners online. It was chrome-finished, had a solid gear ratio, and had great reviews.
When the package arrived, we realized we'd made a massive mistake. The layout was completely backwards: there were four tuners where we needed three, and three tuners where we needed four. Nothing lined up with his headstock holes. We ended up with $180 worth of beautiful tuners that were completely useless.
This happens more than you'd think. Most players don't realize that 7-string guitar tuners come in two distinct layouts that aren't interchangeable. Getting the wrong layout means returning expensive hardware or living with tuning problems, and getting it right means transformative tuning, stability and smoother string changes.
This guide breaks down everything about tuner layouts, what measurements actually matter for a perfect fit, and how to avoid the expensive mistakes that leave you with unusable tuning pegs.
What 7-String Tuner Layout Actually Means.
On a standard six-string guitar, the headstock is typically divided evenly. You often see three tuners on the left side and three on the right. People call this a 3+3 layout. A 7-string guitar has one extra string. This means the split cannot be even. The "layout" tells you how the seven tuners are divided between the two sides of the headstock.
This is a basic design choice from the guitar factory. It decides the path each string takes from the nut to its tuning post. If you get the layout wrong, the strings must bend at bad angles. This creates friction at the nut. Friction makes your guitar go out of tune easily. You will fight to stay in tune every time you bend a string.
Picking the correct layout gives each string a straight path. This reduces friction. It helps your guitar stay in tune longer. It also makes tuning feel smoother. Let's look at the two different layouts.
4+3 Layout Details
A 4+3 layout means four tuners are on the bass side. The bass side is the left side for a right-handed guitar. The bass side holds your thickest, lowest strings. The treble side, or the right side, holds three tuners for your highest strings.
How it looks and works:
This layout gives many headstocks a balanced look. Practically, it groups all four of your wound strings (the thick ones with metal wrap) together on one side. Your three plain strings (the thin, smooth ones) sit together on the other side. Many guitar brands use this setup.
Why it matters:
This design provides consistent spacing between each string at the nut. The angles are made for this arrangement. This can mean better downward pressure on the nut, which helps with tuning stability. If your guitar has four tuning posts on the left and three on the right, you must buy a 4+3 set of tuners.
3+4 Layout Details
A 3+4 layout is the opposite. It places three tuners on the bass side and four on the treble side. Your three lowest strings (like B, E, A) share the left side. Your four higher strings (D, G, B, high E) go on the right side.
How it looks and works:
This can allow for a shorter, more compact headstock design. Some players like this look. It feels modern. It also changes the feel of tuning. Your high strings, which you use for solos, have more space between their tuning posts. This can make precise tuning adjustments a little easier on those strings.
Why it matters:
The string pull angles differ from those in a 4+3 layout. The pressure on the nut is distributed differently. A guitar built for 3+4 needs tuners made for that pattern. You cannot use a 4+3 set.
Critical Measurements for Perfect Tuner Fit
You know your layout: 4+3 or 3+4. Now you need to check the physical fit. Even two sets of 4+3 tuners from different brands might not fit the same. Here are the three most important things to measure on your guitar.
A) Post Hole Specifications

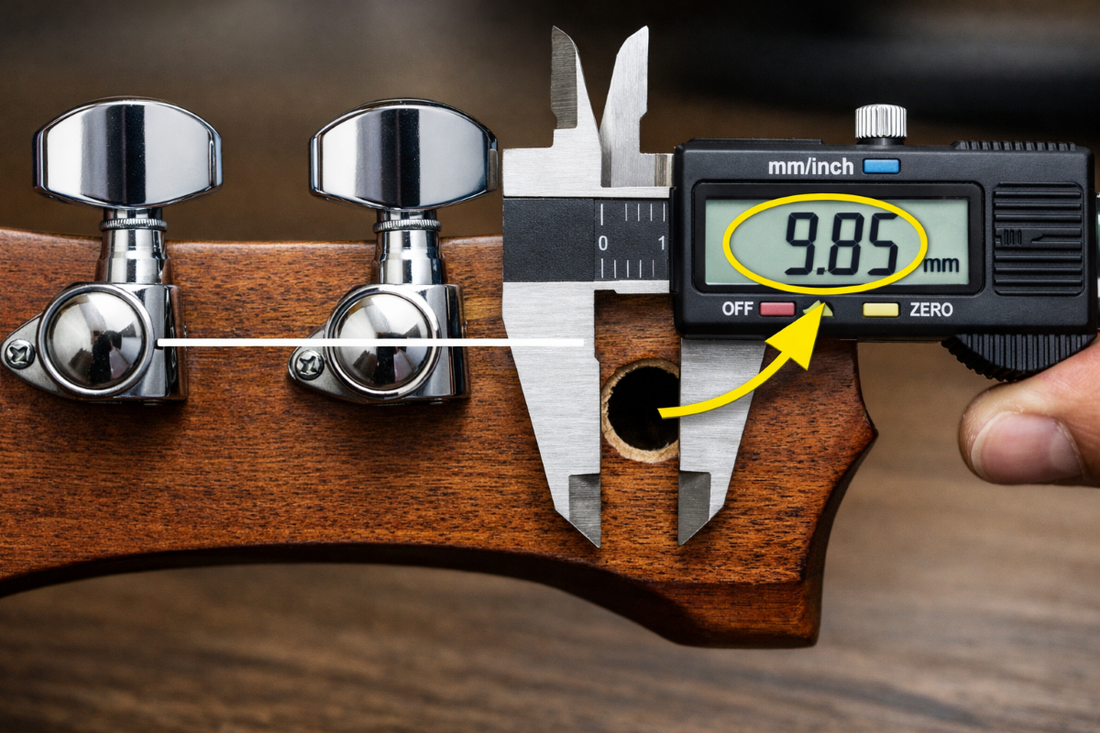

This is the hole diameter in your headstock where the tuner post passes through. You must measure this exactly. The most common size for modern guitars is 10mm (about 13/32 of an inch). Some older guitars use different sizes, like 8.5mm or 11/32 inch.
A tuner made for a 10mm hole will not fit in an 8.5mm hole. You would need to drill the hole bigger, which is a permanent change. A tuner made for a small hole will be loose and wobbly in a big hole. Always use a caliper or a precision ruler to find your exact hole size before you shop.
B) Center-to-Center Spacing
This is the distance from the center of one tuner hole to the center of the very next tuner hole. This spacing is not the same on all guitars. If the spacing on your new tuners does not match your guitar's holes, you cannot install them without drilling new holes. This is difficult and can ruin your headstock.
To measure, find the exact center of each post hole. Measure the distance to the hole's center, right next to it. Do this for all holes on one side. Write down the numbers. A quality set, like the Guyker GK-07SP Locking Guitar Machine Heads (4+3 / 3+4 compatible), is engineered to precise spacing standards, making it easier to match your guitar's measurements.
C) Mounting Hardware Requirements
Tuners have screws that hold them tight to the back of the headstock. You need to check two things:
- Screw Hole Position: Where are the screw holes on your old tuners? Are they directly behind the post, or off to the side? New tuners must match this, or the old screw holes will show.
- Headstock Thickness: Measure how thick your headstock is. Some tuner posts are longer. If your headstock is thin and the post is too long, it will stick out too far on the back. This can look bad and feel uncomfortable.
D) String Path Alignment
Look at how your old strings run from the nut to the tuner post. Is the path straight? When you choose new tuners, you want to keep this same straight path. The position of the new tuning post should be very close to the position of the old one. This keeps the break angle correct and prevents new tuning issues.
Mistakes Players Make
Many players rush to buy new tuners and forget to check the details. Here are the big mistakes to avoid.
- Assuming All 7-String Tuners Are Universal: This is the number one error. Just because a product title says "7-string tuners" does not mean they fit every 7-string guitar. The 4+3 and 3+4 layouts are not interchangeable.
- Ignoring Left vs. Right Tuner Orientation: For a 4+3 set, you need four "left-handed" tuners and three "right-handed" tuners. For a 3+4 set, you need the opposite. You cannot buy seven of the same tuner.
- Not Checking Mounting Screw Compatibility: The new screws might not line up with the old screw holes. You may need to fill the old holes and drill new ones, which is advanced work.
- Buying Without Measuring: Never guess your post hole size or spacing. A few minutes with a ruler can save you weeks of hassle.
-
Overlooking String Path: Even if the tuners physically fit in the holes, if the posts are in a different place, your strings may not line up correctly with the nut slots. This creates friction and poor tuning.
How to Verify Compatibility Before Buying
Follow these steps to be sure your new tuners will fit.
- Identify Your Layout: Look at your headstock. Count the tuners on the bass (low string) side and the treble (high string) side. Now you know if you need 4+3 or 3+4.
- Gather Your Tools: You need a digital caliper (this is best) or a very accurate ruler that shows millimeters.
- Measure the Post Hole: Use your caliper to measure the diameter of one of your current tuner posts where it goes through the headstock. Write this number down.
- Measure Center-to-Center Spacing: Measure the distance between the centers of two adjacent post holes. Check this for several pairs to be sure.
-
Check Screw Holes: Take clear pictures of the back of your headstock. Note where the screws are.
Compare with Manufacturer Specs: Go to the product page for the tuners you want. Look for their "specifications" list. Compare your measurements to their listed specs for post diameter, spacing, and headstock thickness. If the specs match, you have a winner.
If your measurements do not match any standard tuner set, you have two choices. You can carefully modify your headstock (drilling), but this is risky. Or you can take your guitar and your measurements to a professional guitar repairperson (a luthier). They can help you find a solution or install the tuners for you.
Choosing the Right Tuners for Your Layout
For 4+3 Layouts:
You need a set specifically labeled "4+3." This will include the correct four left-hand and three right-hand tuners. Look for features that matter to you, like a high gear ratio (18:1 or 21:1) for very precise tuning, or locking mechanisms for faster string changes and rock-solid stability.
For 3+4 Layouts:
You need a set specifically labeled "3+4." This will have three left-hand and four right-hand tuners. Some of these sets are designed to improve the string break angle on the treble side, which can help your high strings stay in tune better.
Getting the layout right from the start saves money and frustration. Now that you know how to get the right fit. Which layout does your 7-string use, and when was the last time you measured those tuning post holes?
FAQ
Are 4+3 and 3+4 7-string tuner layouts interchangeable?
No. Most players don't realize that 7-string guitar tuners come in two distinct layouts that aren't interchangeable. A guitar built for 3+4 needs tuners made for that pattern, and you cannot use a 4+3 set.
What measurements matter most for a perfect tuner fit?
Measure post hole diameter, center-to-center spacing, mounting hardware requirements (screw hole position and headstock thickness), and string path alignment.
What is the most common tuner post hole size?
The most common size for modern guitars is 10mm (about 13/32 of an inch), but some guitars use different sizes like 8.5mm or 11/32 inch.
What happens if the spacing doesn’t match?
If the spacing on your new tuners does not match your guitar's holes, you cannot install them without drilling new holes, which is difficult and can ruin your headstock.
What if the screw holes don’t line up?
The new screws might not line up with the old screw holes. You may need to fill the old holes and drill new ones, which is advanced work.
